Is Your Well Filter Installed Wrong?
A spin-down filter can be a helpful part of a well system.
It can catch sand, grit, and other small debris before it reaches the home.
But placement and direction matter a lot.
A homeowner in a new construction neighborhood noticed a troubling setup.
The same setup was used on more than 30 homes.

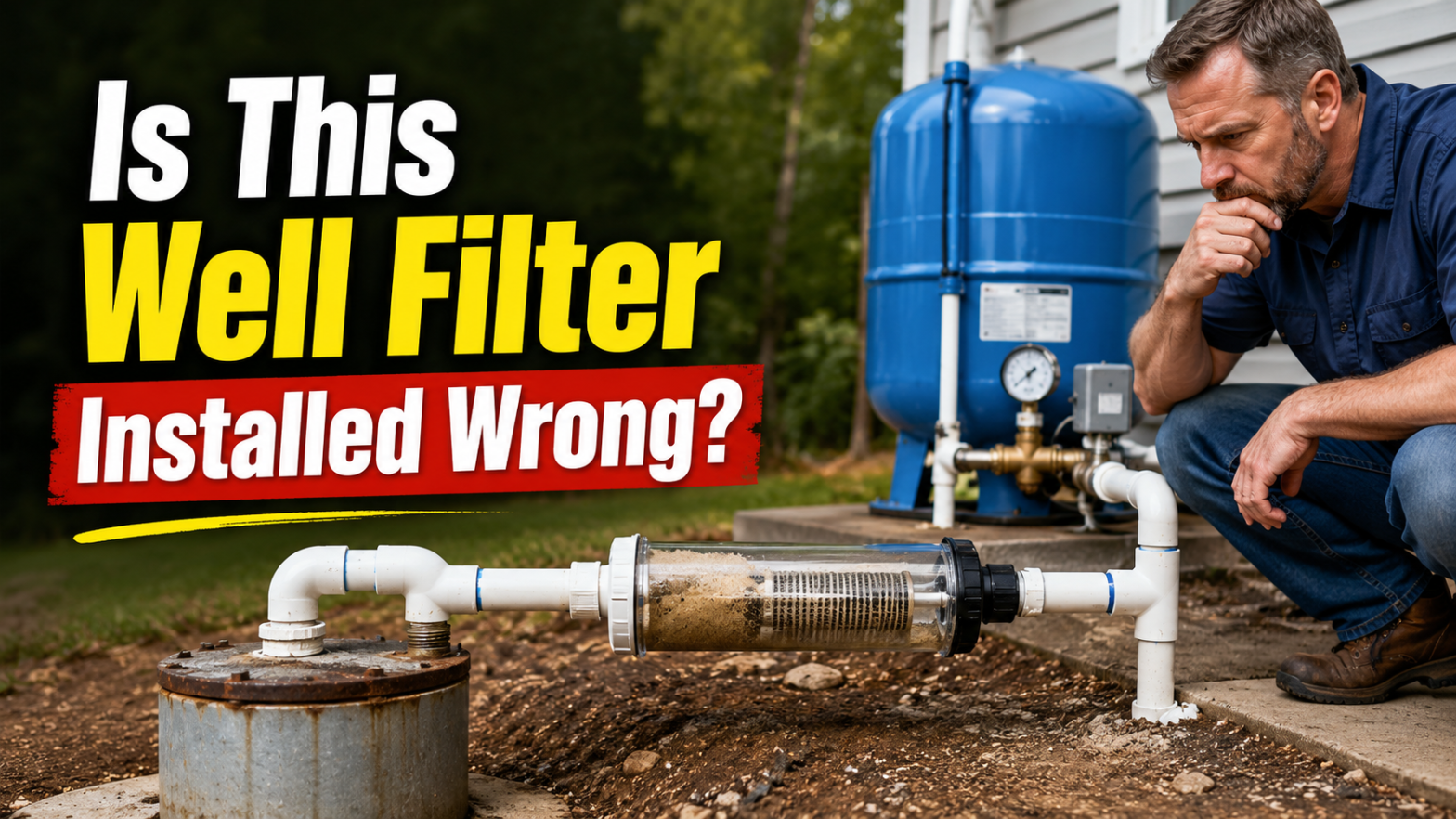

The installer placed a Vu-Flow NT200 T-style spin-down filter near the well casing.
The filter was installed flat on its side.
It was also installed before the pressure switch and pressure tank.
That raised some real concerns.
Why Filter Direction Matters
A spin-down filter is made to let heavy sediment drop into the clear bowl.
That is the whole point of the design.
When the purge valve is opened, sand should flush out the bottom.
In a horizontal install, the bowl no longer works the same way.
Sand may sit across the screen instead.
That can make the filter clog faster.
It can also make flushing less useful.
Vu-Flow says its filters should be installed where they can be reached and cleaned.
You can review Vu-Flow’s own install resources here:
Vu-Flow installation guide.
Why Location In The System Matters
The bigger issue is where the filter sits.
This filter is before the pressure switch and pressure tank.
That can be risky on a well system.
If the screen is plugged with sand, the water flow may stop before the switch.
The switch may still read low pressure.
That can keep the pump running when water cannot move.
This is often called dead-heading a pump.
It can overheat parts and damage the system.
It may also stress plastic pipe and fittings.
Well owners can read more about private well care from the
EPA private wells guide.
What About Flushing The Filter?
A pressure tank stores water under pressure.
That stored water helps push debris out during flushing.
If the filter is before the tank, flushing may be weaker.
The filter only gets flow from the pump at that moment.
That may not clear sand from the screen well.
This is even worse when the bowl is sideways.
Question And Answer
Is a horizontal spin-down filter before the pressure switch acceptable?
No. Based on this layout, it does not look like good practice. The filter should be installed in a way that lets sediment fall and flush out. It should also not create a pump risk before the pressure switch.
The installer may say it works.
But working today does not mean it is safe long-term.
A proper install should follow the maker’s instructions.
It should also protect the pump from blockage.
The homeowner should ask the builder for a written correction plan.
They can also ask Vu-Flow for written approval of the layout.
If no approval is given, the system should be redone.
A better layout usually places the filter after the pressure tank.
The purge outlet should also point down.
That gives the filter gravity, pressure, and safe service access.
For a new home, this should be fixed before final acceptance.
It is much easier to correct now than after pump damage.
I’m Chris Mayer, writing for Plumbing 101.
